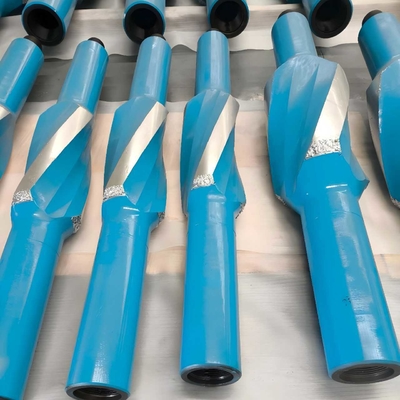

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Büyük resim : 36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	China Brand
Sertifika:	API 7-1
Model numarası:	36 "Dize/Yakın Bit Stabilizatör

Ödeme & teslimat koşulları:

Ambalaj bilgileri:	Ahşap kasa
Teslim süresi:	20-40 gün
Ödeme koşulları:	T/T

İletişim

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

Açıklama

Malzeme:

4145H

Model:

Kaynaklı bıçaklar

Sert Kaplama:

HF1000-HF5000

Bağlantı:

NC 50

Vurgulamak:

36 inch spiral welded blade stabilizer

drilling stabilizer with fishing neck

stabilizer with 8-5/8 H90 box

36" Near Bit/String Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8"Reg. box x 8-5/8 H90 box up

Product Specifications

Attribute	Value
Material	4145H
Model	Welded Blades
Hard Facing	HF1000-HF5000
Connection	NC 50

Product Description

36" Near Bit/String Spiral Welded Blade Stabilizer featuring an 11" fishing neck with 8 5/8" Reg. box connection and 8-5/8 H90 box up configuration.

Detailed Specifications

Attribute	Value
Stabilizer Type	Near Bit Spiral Welded Blade
OD	36 inches
Fishing Neck	11 inches
Connection	8 5/8" Reg. box x 8-5/8 H90 box up

APPLICATION

We supplies a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All these stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed the strictest quality control and quality assurance standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for a wide variety of configurations and hole sizes

FIVE KINDS OF HARD FACING

1. HF1000: Crushed tungsten carbide inserts(TCI) held in a nickel bronze matrix

2. HF2000: Trapezoidal tungsten carbide inserts(TCI) held a sintered carbide nickel bronze matrix

3. HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades

4. HF4000: Tungsten carbide inserts (button type)are pressed tightly in the holes of blades at room temperature

5. HF5000: This oxy-acetylene process pplies tough molten carbide particles of varying sizes in a nickel chrome matrix

TECHNICAL DATASHEET
